Hollow Braid Plastic Rope Making Machine 120KW Polypropylene

Name: Hollow Braid Plastic Rope Making Machine 120KW Polypropylene
Brand: LEAP
Price: 1 USD

Brand Name : LEAP

Model Number : RS90

Certification : CE/ISO90001

Place of Origin : CHANGZHOU,CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 sets per year

Delivery Time : 90 working days

Packaging Details : Acceptable customization

Application : Floating Rope

Material : Polypropylene

Deiner : 280D

Capacity : 100kgh

Screw Diamter : 80mm

Technics : Hollow

Type : Braid

Length : 32 meters

Contact Now

Rope Making Machine For Hollow Braid Polypropylene Floating Rope

Parameter:

Product Name:	Hollow Braid Polypropylene Floating Rope
Yarn Deiner	280D
Capacity:	100kgh
Screw diameter:	80mm
Rotation speed of screw:	0～70 rpm
Running capacity:	120 KW

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm,Screw speed: 0～72rpm.

(2) L:D: 33:1, Screw material: 38CrMoALA ,

(3) Filter: Auto screen changer.

(4) Pressure feedback system can adjust the screw speed automatically.

(5) Far infraed barrel heater

(6) Melt pump, rotation speed: 0-45 rotation.

(7) Spinneret plate: 2 pieces

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

3. Dryer system:1 set

4. Frist Seven roller stretching unit: 1 set

(1) Five variable diameter rollers and two steel rollers.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm

6. Second Seven roller stretching unit: 1 set

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

7. Spool winder:as client's requirements.

Pictures:

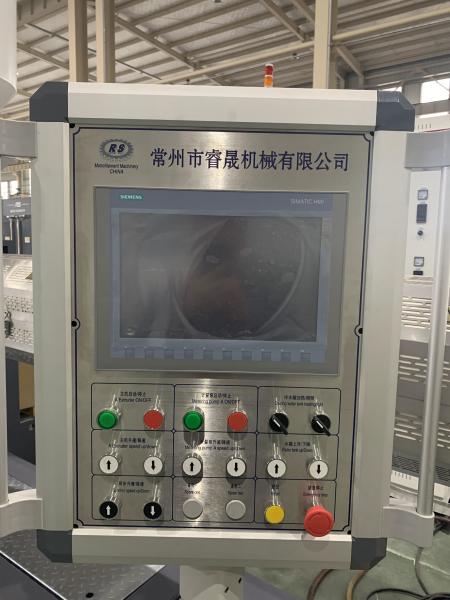

Hollow Braid Plastic Rope Making Machine 120KW Polypropylene
