PP Monofilament Making Machine For Reinforced Macro Fiber Used In Concrete
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 90 mm, Rotation speed of screw: 0～60 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA; The screw is suitable for PP Virgin.
(3) Material of barrel heater: Cast aluminium.
(4) Electric heating round spinneret: 1 set
(5) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.
(6) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.
2. Quenching tank: 1 set
(1) Material of distributing roller: stainless steel
(2) Side Push-pull model
3. Seven roller stretching unit A
(1) Seven roller variable diameter rollers, Five rubber roller.
(2) Steel box with accurately grind gear.
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Built-out oil lubrication system which makes the gears runs steady.

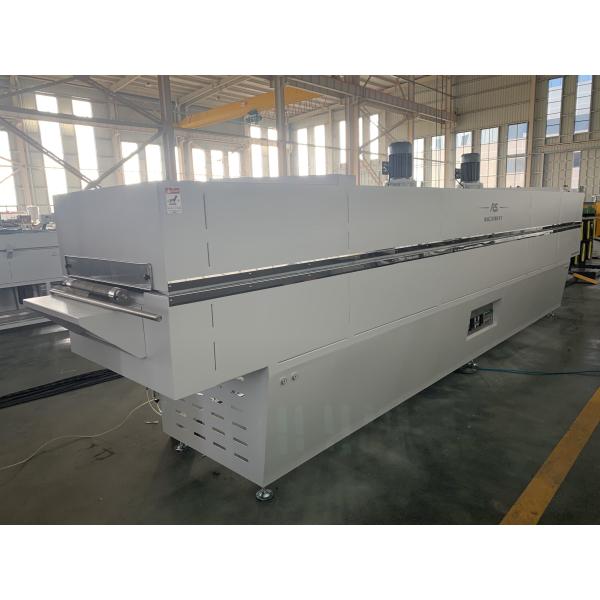

4. Double layer hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×4 sets
(2) Heating power: 23KW×2
(3) Oven length: 4000 mm
(4) Special design of hot air channel.
5. Seven roller stretching unit B.
(1) Seven roller variable diameter rollers, the working width 800mm.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
6. Single layers hot blast stretching oven: 1 set
(1) Fan power of each oven: 2.2KW×2 sets
(2) Heating power: 30KW
(3) Oven length: 5000mm
(4) Special design of hot air channel.
7. Seven roller stretching unit C.
(1) Seven roller variable diameter rollers, the working width 800mm.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
8. Waster yarn collectors: 1 set
(1) Torque motor power: 80KG.cm
9. Spool winder
11. Overall size: 40000×1800×2500mm
Specification:
| Screw diameter | Φ100mm |
| Raw material | PP | Filament size | customzied |
| Capacity | 150Kg/H | Filament shape | curved |
| Screw L:D | 33:1 | Stretching unit | 3 sets |
| Screw material | 38CrMoALA | Instillation power | 260Kw |
| Max linear speed | 80m/min | Overall size | 37×2.7×2.8m |
Pictures:
